A drone LiDAR survey can capture millions of points in a single flight. That raw data looks impressive, but it isn’t ready for design work yet. Point cloud processing is the step that turns those scans into data engineers can trust.

Rushing this step creates real risk. Noisy data can hide drainage problems, misplace grades, and throw off earthwork quantities. Those errors often show up later, when they cost far more to fix.

In plain terms, point cloud processing cleans, aligns, classifies, and checks LiDAR data. The result can become terrain models, CAD drawings, and GIS layers. This guide walks through each stage and what civil engineers, contractors, and developers should ask for before a project starts.

What Point Cloud Processing Means in LiDAR Mapping

Point cloud processing is the work of turning raw LiDAR measurements into usable 3D data. A point cloud is a large set of points, each with an X, Y, and Z position. Together, those points show the shape of the ground, buildings, trees, and other features.

LiDAR mapping collects these points by sending laser pulses from a sensor and timing each return. The sensor may sit on a drone, a crewed aircraft, a vehicle, or a tripod. Every platform produces a point cloud, but none of them delivers a finished product on its own.

Processing is where raw points gain meaning. A technician sorts ground from vegetation, removes errors, and ties the data to known coordinates. Without that work, the cloud shows the site but can’t support design decisions.

How Raw LiDAR Scans Become High-Density Point Clouds

Raw LiDAR data starts as separate streams of information. The laser records distances and angles. A GNSS receiver tracks the sensor’s position, and an inertial measurement unit (IMU) tracks its tilt and heading.

The first processing stage combines these streams. This step is often called trajectory processing. It works out where the sensor was and which way it pointed for every laser pulse.

Once the flight path is solved, each return gets a real-world coordinate. Overlapping flight lines are then merged into one cloud. Point density depends on flight height, speed, sensor type, and line overlap, so it varies by project.

Many sensors also record several returns from a single pulse. The first return might hit a treetop, while the last one reaches the ground below. These extra returns are a big reason aerial LiDAR mapping works well on wooded sites.

Processing Steps That Improve Point Cloud Data Quality

Data quality comes from a series of checks and corrections. Each one targets a different type of error. The main steps usually include:

• Strip alignment, which matches overlapping flight lines so surfaces line up

• Noise removal, which deletes stray points from birds, dust, or reflections

• Ground control adjustment, which ties the cloud to surveyed control points

• Classification, which labels points as ground, vegetation, buildings, water, or other features

• Accuracy checks, which compare the cloud against independent check points

Why Classification Matters

Classification is often the most important step for civil work. A bare-earth terrain model uses only ground points. If brush or debris slips into the ground class, contours and grades will be wrong.

Software handles most of the first pass. Experienced technicians then review problem areas by hand, such as steep slopes, dense brush, and bridge decks. That manual review takes time, but it often decides whether the data holds up in design.

Converting Processed Point Clouds Into CAD and GIS Files

Most design teams don’t work directly in a point cloud. They need lighter files that fit into Civil 3D, MicroStation, or GIS software. Processing bridges that gap by pulling out what each team needs.

Common deliverables are listed below. The right mix depends on project scope. A grading plan needs different outputs than a corridor study.

• Bare-earth digital terrain models and surface files

• Contour lines at an agreed interval

• Digital elevation models for drainage and watershed studies

• Breaklines along curbs, ditches, and pavement edges

• Planimetric features such as buildings, roads, and utility poles

• Classified LAS or LAZ files for future use

GIS teams often want shapefiles, geodatabases, or raster grids. Engineers usually want surfaces and linework that drop straight into their design files. Ask for both early if more than one team will use the data.

How Accurate Point Cloud Deliverables Support Design and Construction

Accurate deliverables help teams make decisions with fewer surprises. Engineers can design grades, drainage, and roads from a surface they trust. Contractors can estimate cut and fill volumes before equipment reaches the site.

Results still depend on many factors. Equipment, flight planning, point density, vegetation, ground conditions, control data, and processing methods all play a part. LiDAR mapping also doesn’t set legal property lines or replace work that requires a licensed surveyor or engineer.

Confirm the coordinate system, vertical datum, and accuracy target before the flight. Agree on point classes and file formats at the same time. Changing them after delivery can mean costly reprocessing.

Frequently Asked Questions

How long does point cloud processing take?

Timing depends on site size, point density, and the deliverables you need. A small drone LiDAR survey may be processed in days, while a long corridor can take weeks. Heavy vegetation and detailed feature extraction usually add time. Ask your provider for a schedule tied to your exact deliverable list.

What file formats come from point cloud processing?

The most common point cloud formats are LAS and its compressed version, LAZ. Design files are often delivered as DWG, DGN, or civil surface files. GIS layers may come as shapefiles, geodatabases, or raster grids. Confirm the formats and software versions your team uses before work begins.

Is drone LiDAR more accurate than photogrammetry?

Each method has strengths, and accuracy depends on equipment, control, and site conditions. LiDAR usually performs better under tree cover because pulses can reach the ground through gaps in leaves. Photogrammetry builds points from overlapping photos and works well on open, bare sites. Many projects combine both to get terrain data and visual context.

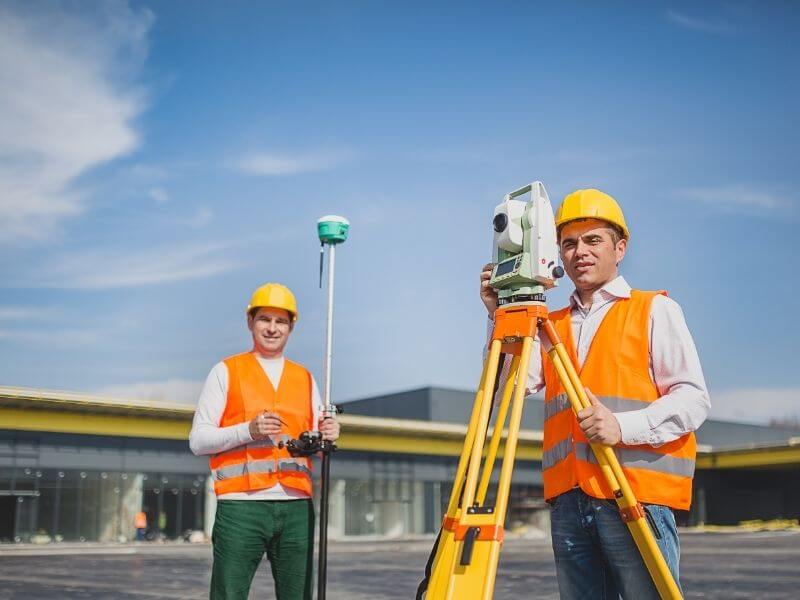

Do I need ground control points for LiDAR processing?

Ground control is common when design or construction depends on the data. Control points tie the cloud to a known coordinate system and help verify accuracy. The number and placement can vary by site size, terrain, and project requirements. Your provider should explain how control will be set and checked.

Can processed point cloud data be reused later?

A classified point cloud can support future work if it’s stored and documented well. Teams often reuse it for later design phases, slope monitoring, or volume comparisons. Its value depends on keeping the coordinate system, datum, and metadata on record. Ask for the full classified dataset along with your CAD and GIS files.
